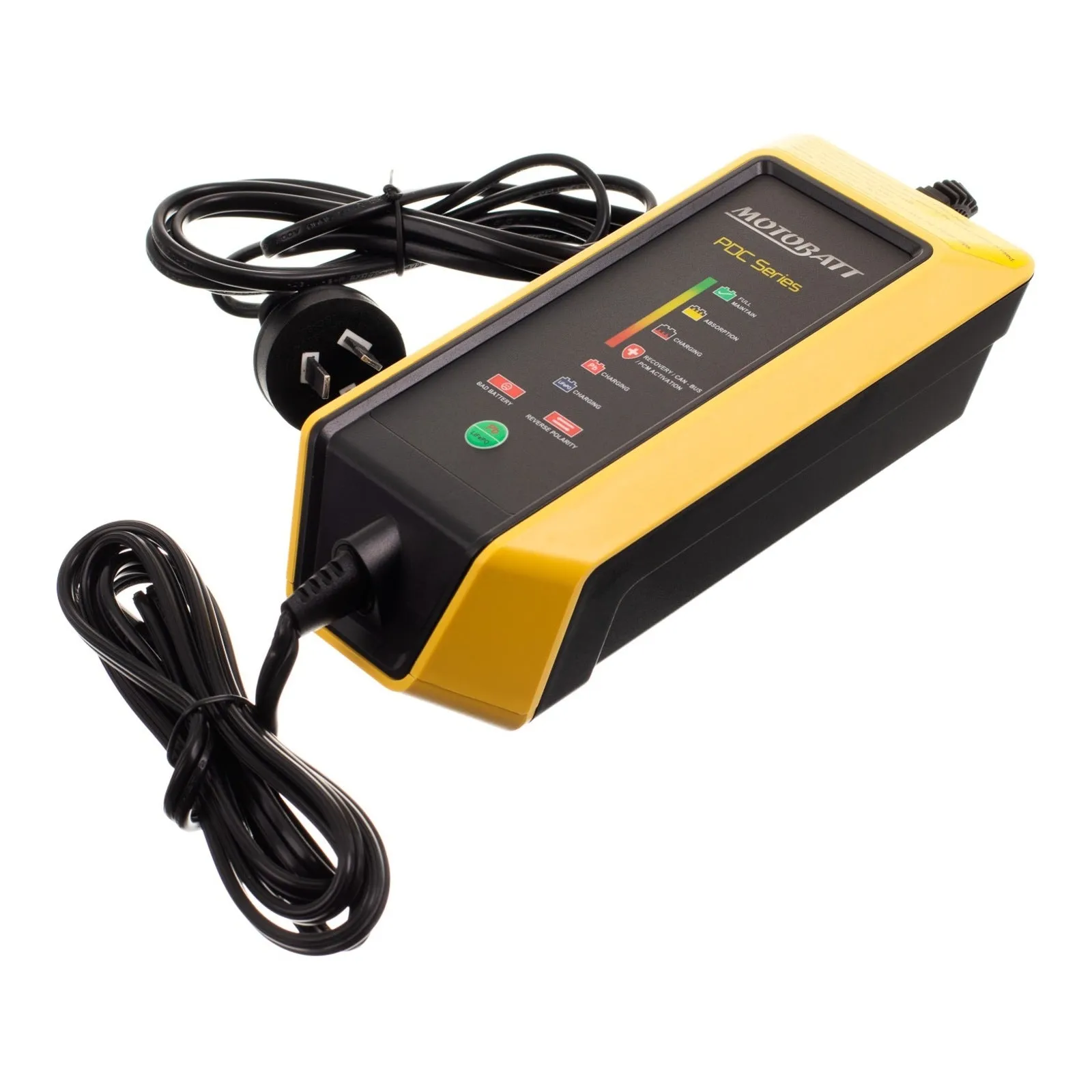

Founded in 2008, Motobatt is a manufacturer of premium Powersports
batteries, battery chargers and battery related accessories. Motobatt
is the creator and holds patents all over the world for the Motobatt 4
terminal battery that facilitates flexible battery installation across
a wide variety of vehicles while maintaining an OE like
fit.

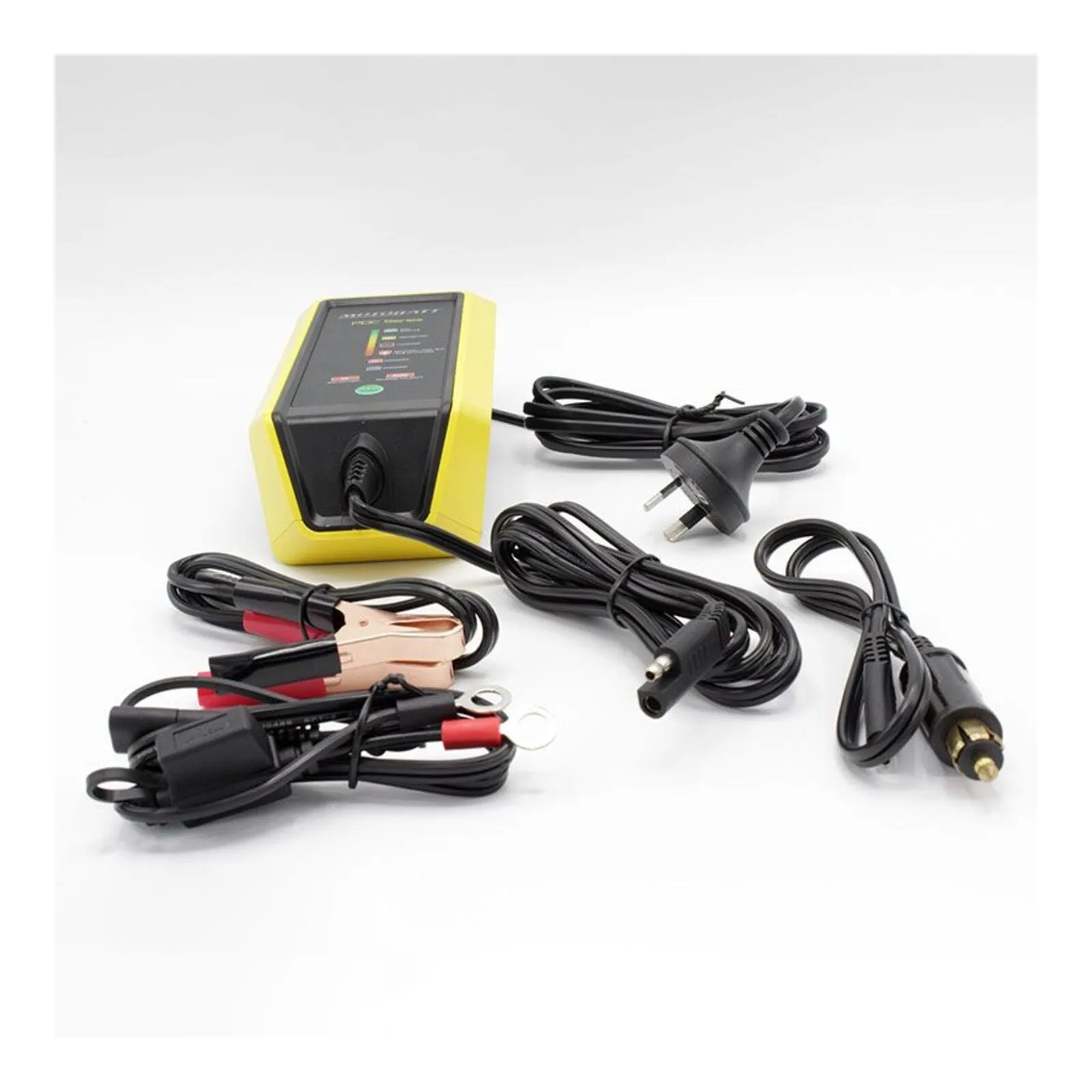

Features:

• 9 Step Algorithm


• Canbus Compatible


• Automatic Charging & Maintaining


• Overcharge Protection


• Reverse Polarity Protection (Lead-Acid Only)


• Short Circuit Protection (Lead-Acid Only)


• Spark Proof (Lead-Acid Only)

Specifications:

• Applicatio 12V AGM, Lead-Acid & Lithium


• Input: Auto-switching 120-240VAC 50/60 Hz


• Input Cable: 6' 18AWG, U.S. SPT-2, EU-H03VV, Aust/NZ-H03VV


• Output: 12VDC 2A


• Max Charge Current: 2A


• Max Voltage: 14.9V (Lead-Acid), 14.6V (Lithium)


• Battery Capacity: 4-100Ah (Lead-Acid), 2-20Ah (Lithium)

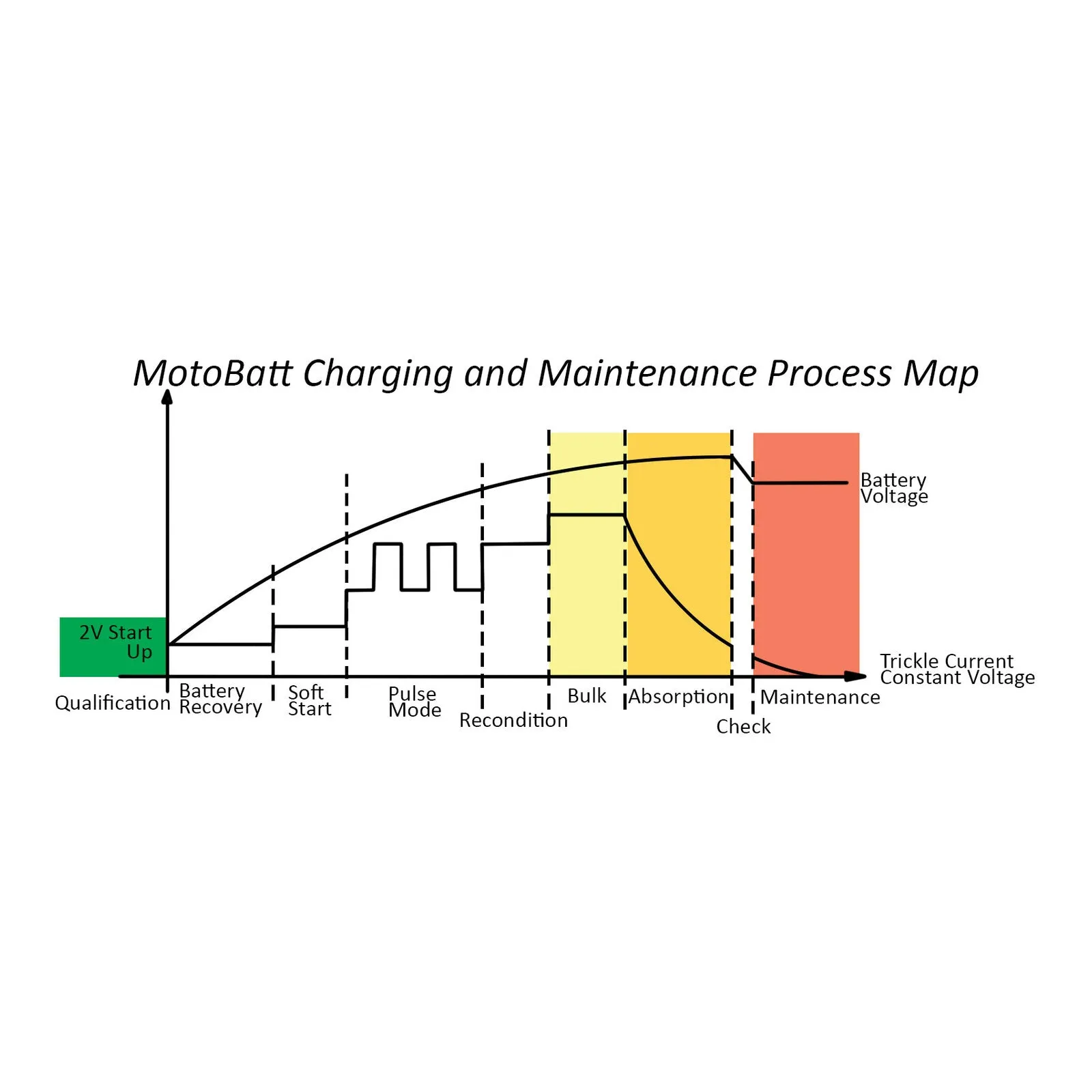

Motobatt chargers utilise Motobatt’s unique 9 Stage Charging
and Maintenance Process.

Qualification Phase:

Initially ensures that the battery is in good condition prior to
launching charge processing. As a safety measure charge process will
not begin if the battery is below 2V.

Battery Rescue Phase:

Motobatt Battery Rescue starts if the battery voltage has risen
unusually high in the early portion of the re-charge cycle. This is
usually caused by plate sulfation. Once the battery rescue phase has
succeeded in getting the battery to accept power, normal battery
charging will begin.

Soft Start Phase:

Soft Start is used when the charger has detected a battery at a
very low initial state of charge. Voltage and current are delivered at
specified rates to help the battery to recover prior to entering Pulse
charge mode.

Pulse Mode Phase:

Motobatt Pulse mode provides a high-frequency pulse charge to help
the newly recovered battery to continue to accept charge as it enters
the reconditioning phase.

Recondition Phase:

The Motobatt reconditioning phase continues to work the battery at
a slightly higher voltage and amperage to “re-activate”
the battery plates for improved depth of charge and charge
acceptance.

Bulk Charge Phase:

With the battery now through Pulse and reconditioning phases and
well on its way to full recovery the Motobatt bulk charge phase gives
the battery constant current taking the battery up to 80% of its
capacity.

Absorption Phase:

In the Motobatt absorption phase, the battery is given constant
voltage while the current is reduced based on action taken from
monitoring the batteries current state until the battery is 100%
charged.

Check Phase:

The battery will now be checked to be sure that it is holding a
charge properly and the charger will make a determination and classify
the battery for use, or not.

Maintenance Phase:

The battery can be safely left on the charger indefinitely. The
unit will monitor the battery and “turn-on” again as
needed to maintain the battery at a full state of readiness.
